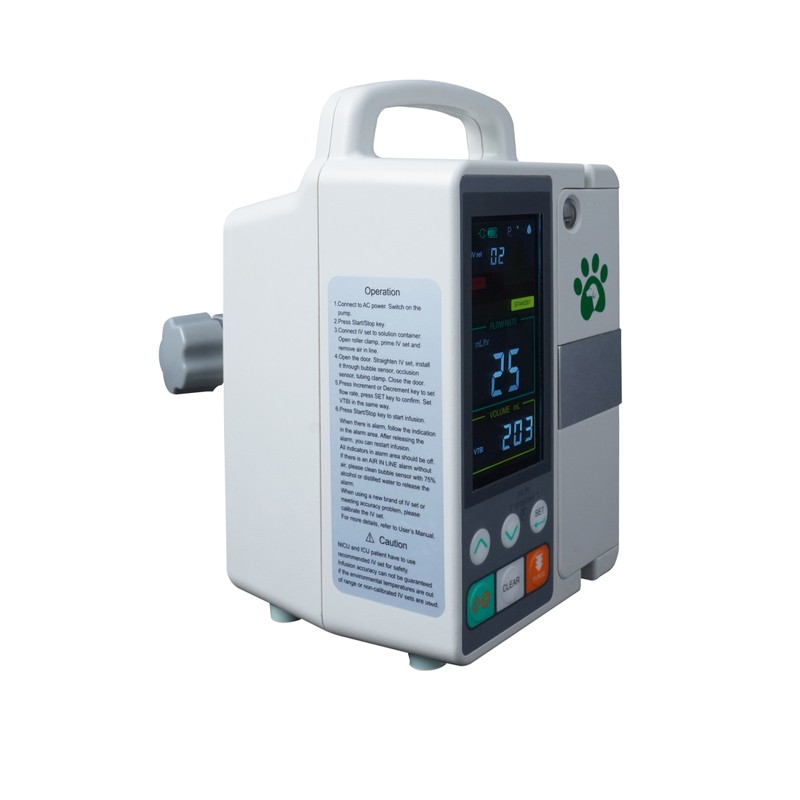

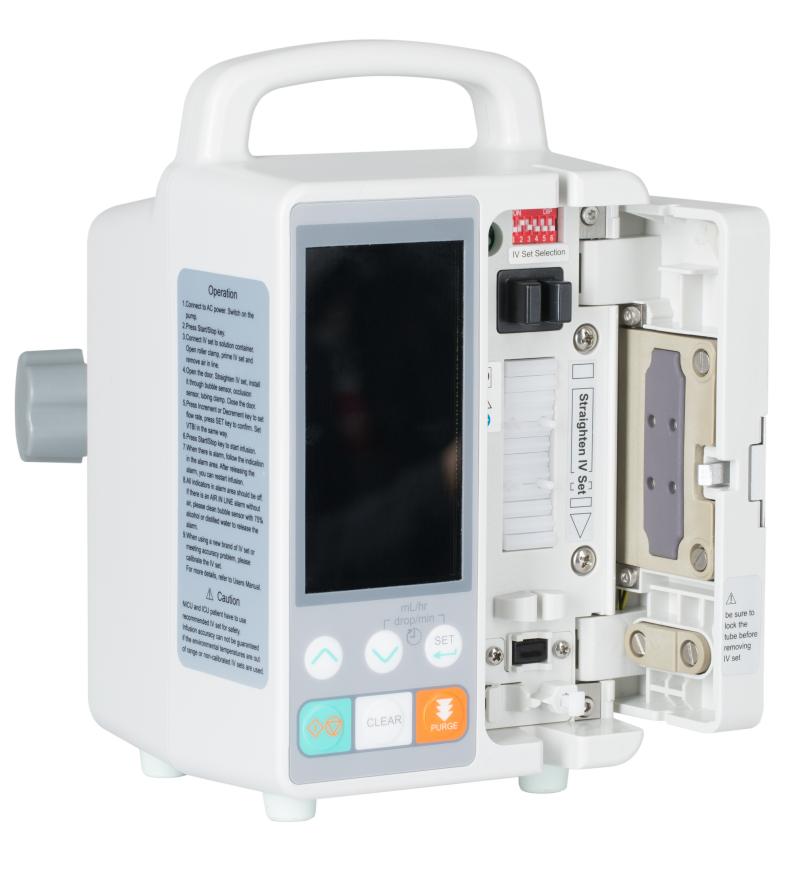

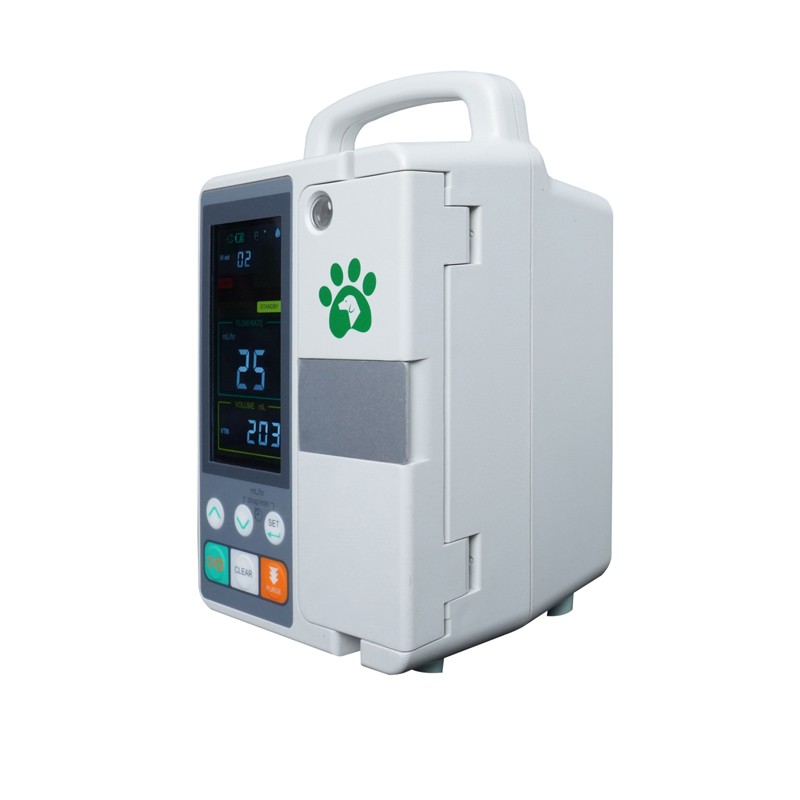

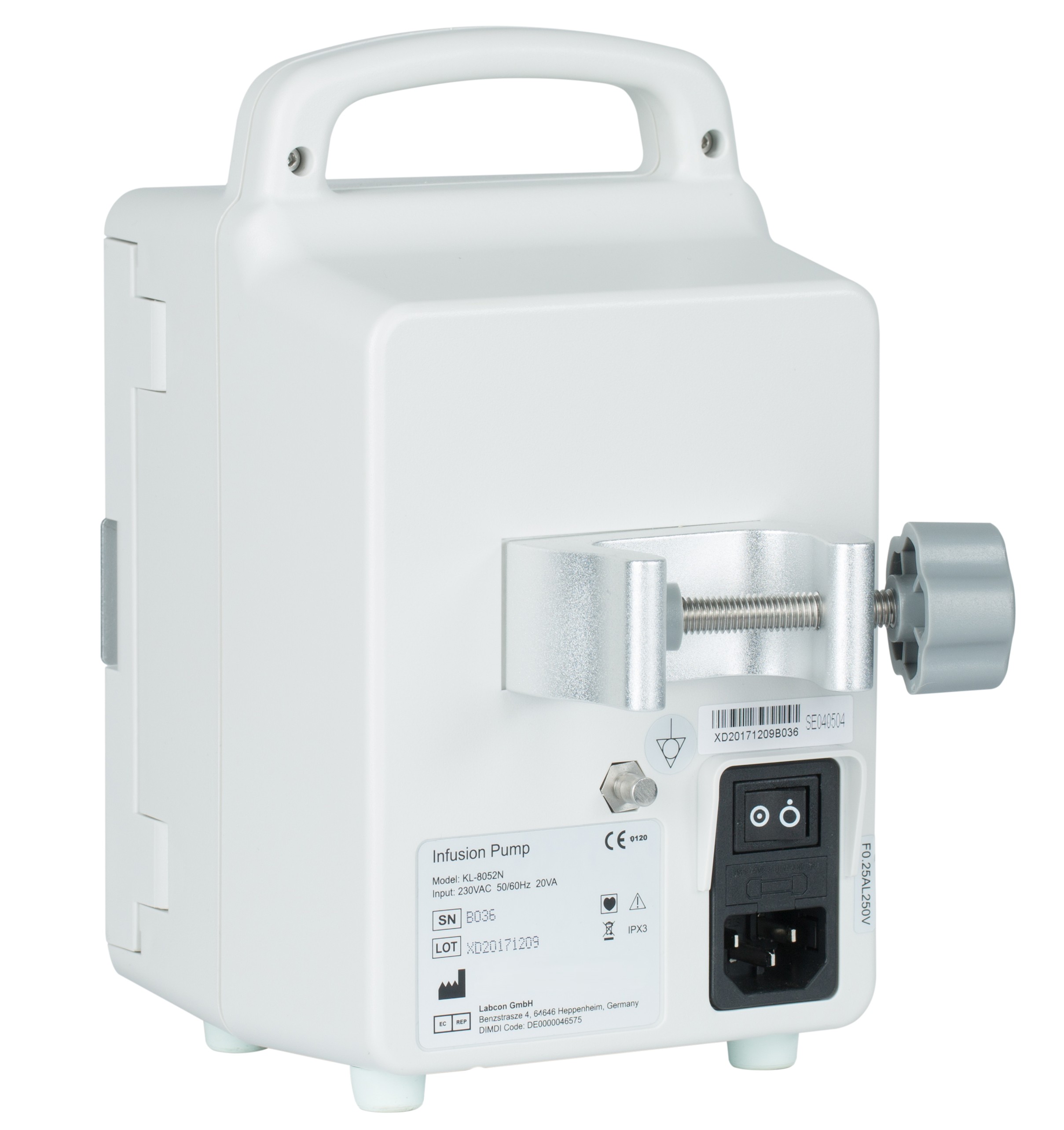

Infusion Pump KL-8052N
Product Specifications
|
Parameter Category |
Specific Specifications |
|
Product Type |
Infusion Pump |
|
Model |
KL-8052N |
|
Pumping Mechanism |
Curvilinear peristaltic |
|
IV Set Compatibility |
Compatible with IV sets of any standard |
|
Flow Rate |
0.1-1500 ml/h (in 0.1 ml/h increments) |
|
Purge & Bolus (Flow Rate) |
100-1500 ml/h (in 1 ml/h increments); Purge when pump stops, bolus when pump starts |
|
Bolus Volume |
1-20 ml (in 1 ml increments) |
|
Accuracy |
±3% |
|
VTBI (Volume To Be Infused) |
1-9999 ml |
|
Infusion Mode |
ml/h, drop/min, time-based |
|
KVO Rate |
0.1-5 ml/h (in 0.1 ml/h increments) |
|
Alarms |
Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm |
|
Additional Features |
Real-time infused volume / bolus rate / bolus volume / KVO rate, automatic power switching, mute key, purge, bolus, system memory, key locker, change flow rate without stopping the pump |
|
Occlusion Sensitivity |
High, medium, low |
|
Air-in-line Detection |
Ultrasonic detector |
|
Wireless Management |
Optional |
|
Power Supply (AC) |
110/230 V (optional), 50-60 Hz, 20 VA |
|
Battery |
9.6 ± 1.6 V, rechargeable |
|
Battery Life |
5 hours at 30 ml/h |
|
Working Temperature |
10-40°C |
|
Relative Humidity |
30-75% |
|
Atmospheric Pressure |
700-1060 hpa |
|
Size |
174126215 mm |
|
Weight |
2.5 kg |
|
Safety Classification |
Class I, type CF |
